  • smoke detector batteryt  CR123A  Lithium battery  3.0V

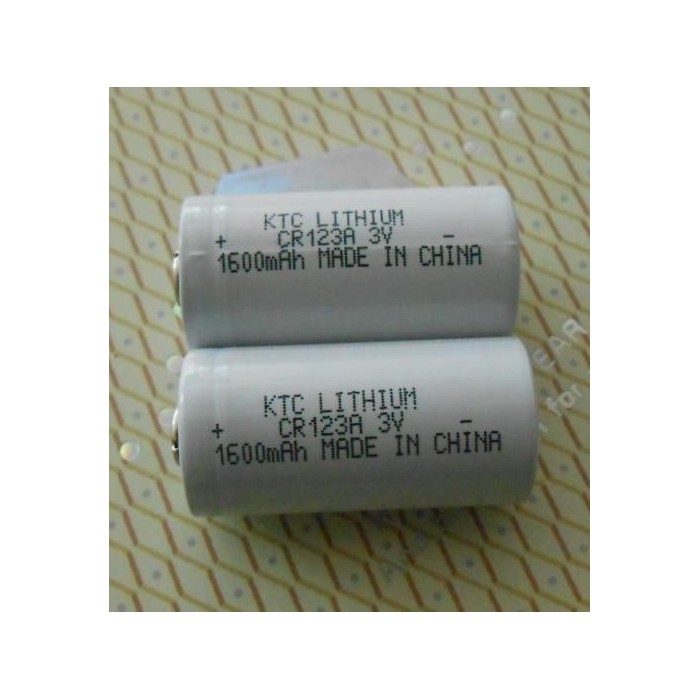

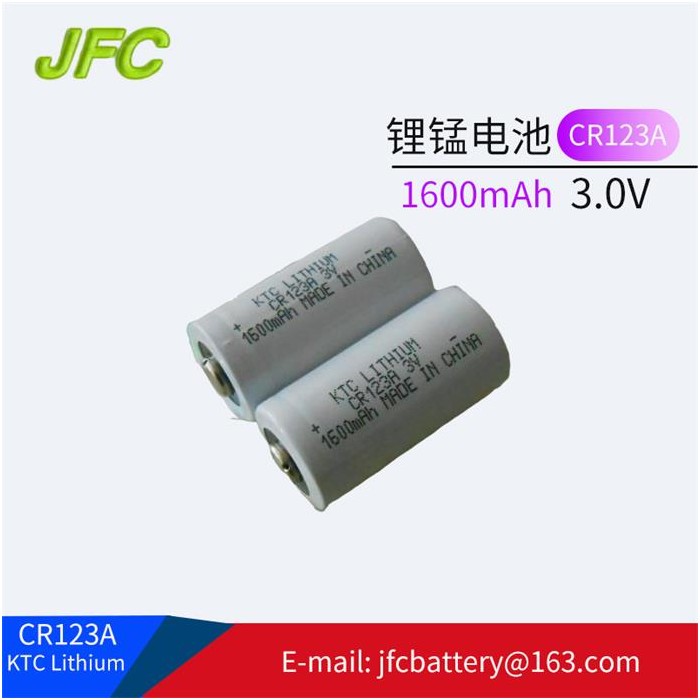

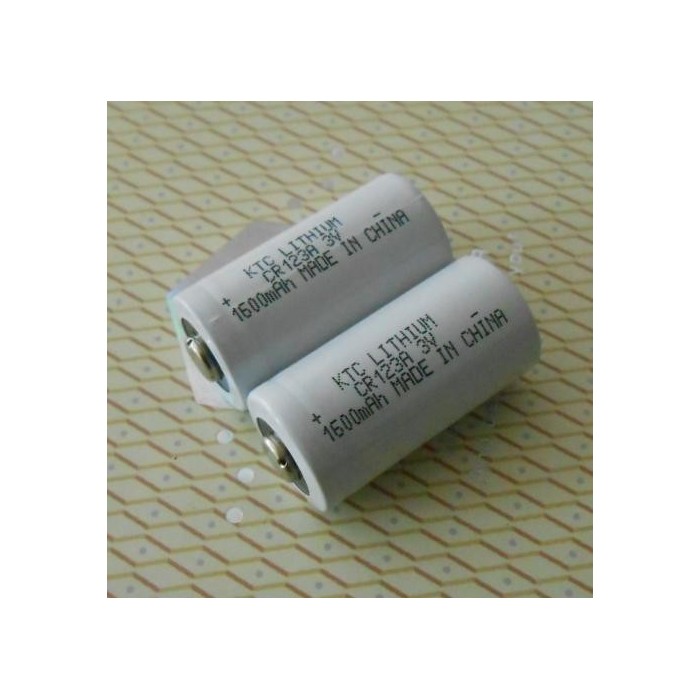

smoke detector batteryt CR123A Lithium battery 3.0V

Features:

1. High energy density

2. High open circuit voltage

3. Wide range of operating temperature

4. Stable operating voltage and current

5. Long operating time

6. Low self-discharge rate (less than 2% per year at 20°C).


Main Applications :

1. Utility meter (water, electricity, gas meter,AMR)

2. Alarm or security equipment (smoke alarm system, detector)

3. GPS tracking

4. Teal time clock

5. Digital control machine

6. Military

7. Remote monitoring systems

8. Car electronics

9. Camera


Quick Detail:

Place of Origin:

Guangdong China (Mainland)

Brand Name:

JFC

Model Name:

3.0V CR123A 1300mAh Li/MnO2 Primary Lithium Battery

Other Name:

CR123A

Nominal Voltage

3.2V

Nominal Capacity:

1300mAh

Size:

16.7(D)*34.2(H))mm



Weight:

16g

Specification:

No.

Items

Specification

1

Nominal Voltage

3.0 V

2

Rated Capacity

1300 mAh with 100 ohm load

3

Minimal capacity

1300 mAh with 100 ohm load

4

Max. Discharge Current

1500 mA continuous





3000 mA pulse

5

Discharge Cut-off Voltage

2.0 V

6

Weight

Approx. 16 g

7
8

Dimensions

Diameter: 16.7±0.3 mm

Height: 34.2±0.3 mm



Operating Temp.

-20 ℃to 60 ℃

9

Storage Temp. <1 year

-10 ℃to 40 ℃

10

Storage Temp. <3 months

-20 ℃to 60 ℃

11

Note:Poly-switch(PTC:144)is inside the cell.
