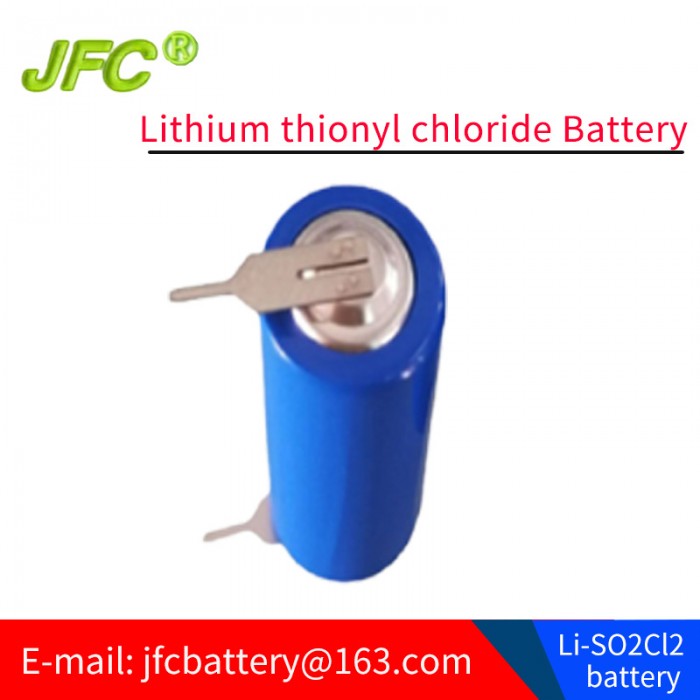

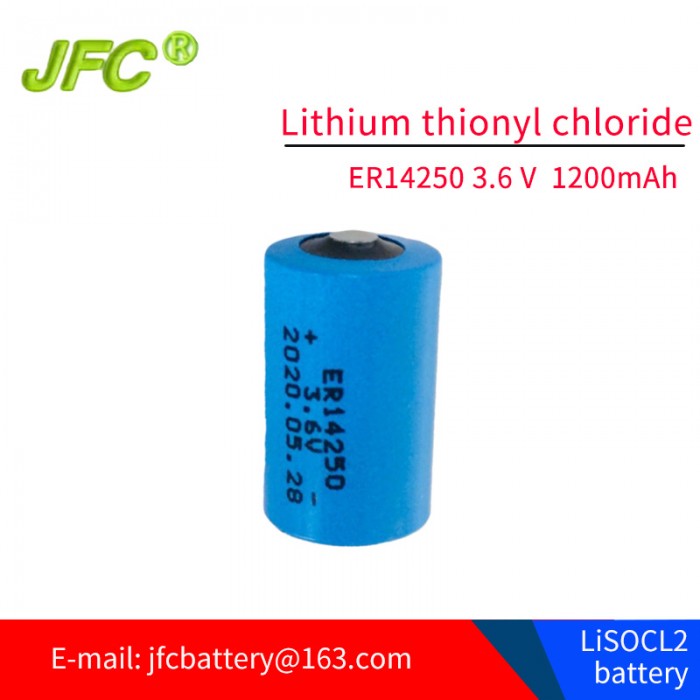

Li-SO2Cl2 battery ER14250 3.6V 1200mAh 1/2AA battery
Technical specifications:
|
Battery Technology |
Lithium thionyl chloride / LiSOCL2 |
|
Battery structure |
High capacity type |
|
Nominal Voltage |
3.6V |
|
Nominal Capacity |
1200mAh |
|
Open circuit voltage |
3.66V (at +20°C) |
|
Cut off Voltage |
2.0V |
|
Max. Constant Current |
40mA |
|
Max. Pulse Current |
80mA |
|
Operating Temperature |
-55°C~+85°C/-67°F~+185°F |
|
Storage Life |
≥10 years |
|
Self – Discharge Rate: |
<1% per year |
|
External Diameter (Max) |
14.5mm |
|
External Height (Max) |
25.5mm |
|
Weights |
10g |
Features
1.High continuous discharge current and current pulses.
2.High energy density, 430Wh/Kg.
3.Open circuit voltage above 3.65V for single cell.
4.Wide range of operating temperature(-55°C~+85°C).
5.Stable voltage and current over 95% of the cell capacity is discharged at high plateau voltage.
6.Long operating time (over 8 years) for continuous low current discharge with high current pulses.
7.Low self-discharge rate (less than 1% per year) and long storage life (over 10 year under normal room temperature).
8.ER14250H SL-2750 can replace saft LS14250,LS14250C,XENO XL-050F TECKCELL TL-2150,TL-4902 TL-5104
small current drain ,middle or small currnt drain,long operating and shelf life.
Application
The battery have wide applications:
Utility water/ Gas Meter, Automatic Meter Reading;
Medical Equipment, CMOS memory backup, Tracking Systems,Remote Monitory Systems;
Law Enforcement (RFID), Earthquake Detectors, Digital Control Devices, Electronic Toll Tags;
Scientific Instruments, Portable Communication Equipment, Military Radio Stations;
and other electric powered devices requiring small size, high capacity batteries.
|

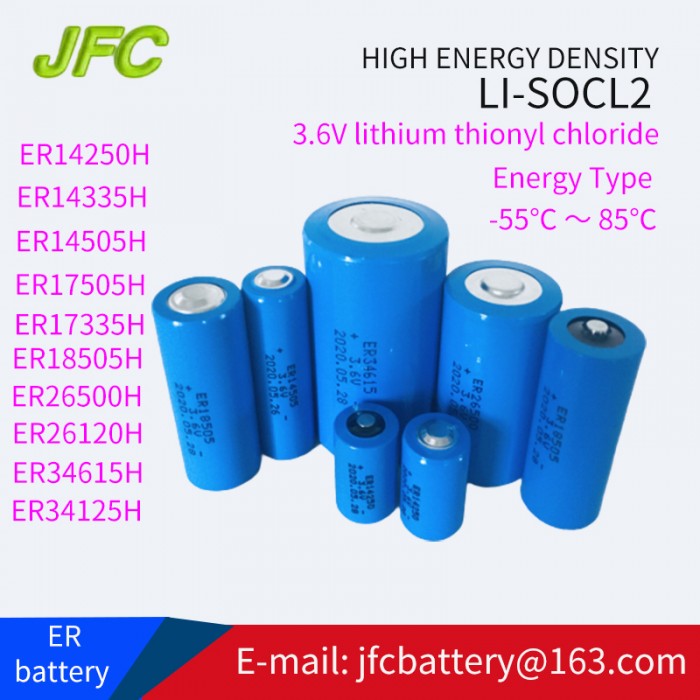

类 型 |
国 际 型 号 |
国家标准 型 号 |
最大外型尺寸 φmm×mm |
公 称 电 压 （V） |
容 量 （Ah） |
最大连续 工作电流 （mA） |
每支 重量 （g） |
|
容量型 |
1/2AA |
ER14250H |
14.5×25.0 |
3.6 |
1.2 |
50 |
11 |
|
2/3AA |
ER14335H |
14.5×33.5 |
3.6 |
1.6 |
50 |
13 |
|
|
AA |
ER14505H |
14.5×50.5 |
3.6 |
2.4 |
100 |
19 |
|
|
|
ER17505H |
17.5×50.5 |
3.6 |
3.5 |
130 |
26 |
|
|
|
ER17335H |
17.5×33.5 |
3.6 |
2.2 |
100 |
19 |
|
|
A |
ER18505H |
18.5×50.5 |
3.6 |
3.8 |
100 |
32 |
|
|
C |
ER26500H |
26.2×50.0 |
3.6 |
9.0 |
200 |
55 |
|
|
|
ER261020 |
26.2×102.0 |
3.6 |
15.0 |
200 |
100 |
|
|
D |
ER34615H |
34.2×61.5 |
3.6 |
19 |
200 |
107 |
|
|
|
ER10450 |
10.4×45.3 |
3.6 |
0.95 |
15 |
10 |
|
|
9V |
ERA9V |
49.8×17.8×27.5 |
10.8 |
1.2 |
50 |
40 |
|
|
功 率 型 |
1/2AA |
ER14250M |
14.5×25.0 |
3.6 |
1.0 |
200 |
11 |
|
2/3AA |
ER14335M |
14.5×33.5 |
3.6 |
1.3 |
200 |
13 |
|
|
AA |
ER14505M |
14.5×50.5 |
3.6 |
2.0 |
400 |
19 |
|
|
|
ER17505M |
17.5×50.0 |
3.6 |
3.0 |
600 |
30 |
|
|
|
ER17335M |
17.5×33.5 |
3.6 |
1.9 |
400 |
20 |
|
|
A |
ER18505M |
18.0×50.5 |
3.6 |
3.2 |
600 |
32 |
|
|
C |
ER26500M |
26.2×50.0 |
3.6 |
6.5 |
1000 |
55 |
|
|
D |
ER34615M |
34.2×61.5 |
3.6 |
14.5 |
2000 |
107 |
|
|
|
|
ER211020M |
21.2×102.0 |
3.6 |
7.0 |
1000 |
60 |
|
|
|
ER14250S |
14.5×25.0 |
3.6 |
0.8 |
40 |
10 |
|
|
|
ER14505S |
14.5×50.5 |
3.6 |
1.6 |
100 |
20 |
|
|
|
ER34615S |
34.2×61.5 |
3.6 |
13.0 |
230 |
105 |
|
锂 二 氧 化 锰 |
1/2AA |
CR14250 |
14.5×25.0 |
3.0 |
0.6 |
800 |
10 |
|
2/3AA |
CR14335 |
14.5×33.5 |
3.0 |
0.8 |
1000 |
14 |
|
|
AA |
CR14505 |
14.5×50.5 |
3.0 |
1.4 |
2000 |
21 |
|
|
2/3A |
CR123A |
17.0×33.5 |
3.0 |
1.4 |
2000 |
20 |
|
|
CRAG |
CR17450 |
17.0×45.0 |
3.0 |
2.0 |
2000 |
26 |
|
|
A |
CR17505 |
17.0×50.5 |
3.0 |
2.3 |
2000 |
30 |
|
|
A |
CR18505 |
18.5×50.5 |
3.0 |
2.5 |
2000 |
35 |
|
|
C |
CR26500 |
26.0×50.0 |
3.0 |
5.4 |
2000 |
62 |
|
|
D |
CR34615 |
34.0×61.5 |
3.0 |
12 |
2000 |
125 |
|
|
|
CR2 |
15.5×27.0 |
3.0 |
0.75 |
1000 |
13 |
|
|
|
2CR5 |
34.0×17.0×45.0 |
6.0 |
1.4 |
2000 |
43 |
|
|
|
CR-P2 |
35.8×19.5×34.8 |
6.0 |
1.4 |
2000 |
42 |
|
|
9V |
CRA9V |
49.8×17.8×27.5 |
9.0 |
0.8 |
300 |
40 |
