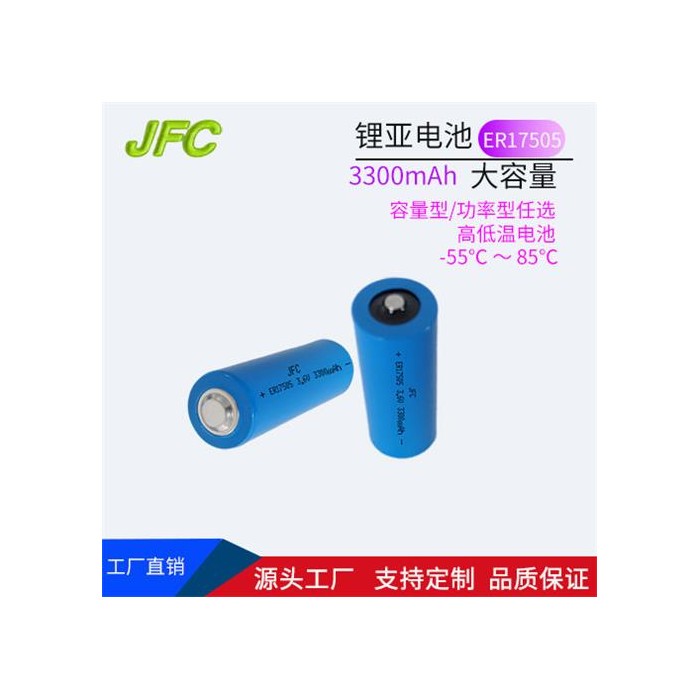

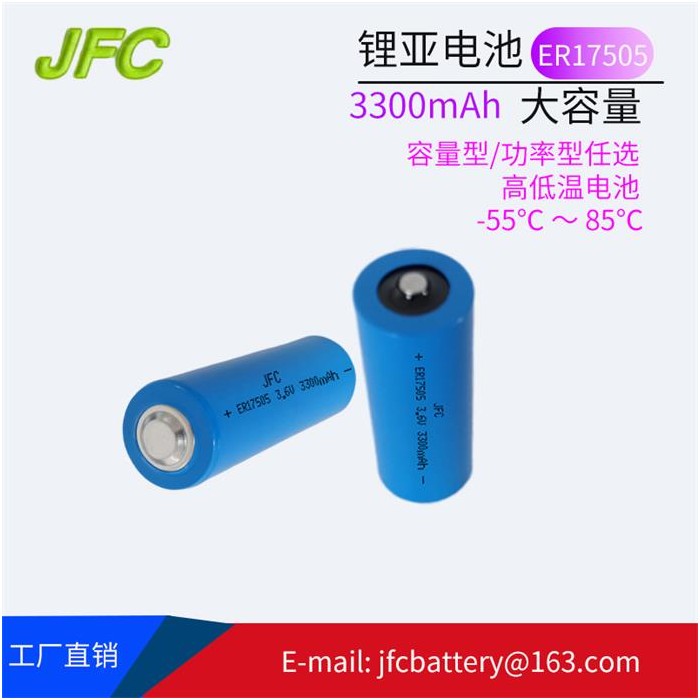

Primary Iot Battery ER17505 3.6V 3500mAh Lithium Li-Socl2 Batteries

Technical specifications:



Battery Technology

Lithium thionyl chloride / LiSOCL2

Battery structure

High capacity type

Nominal Voltage

3.6V

Nominal Capacity

3500mAh

Open circuit voltage

3.66V (at +20°C)

Cut off Voltage

2.0V

Max. Constant Current

100mA

Max. Pulse Current

200mA

Operating Temperature

-55°C~+85°C/-67°F~+185°F

Storage Life

≥10 years

Self – Discharge Rate:

<1% per year

External Diameter (Max)

17.0mm

External Height (Max)

50.5mm

· AMR (Automated meter reading) utility metering (Electricity meter, Gas               meter, Water meter and Heat meter)

· Alarms and security wireless devices, smoke alarm, gas alarm, door sensor, carbon monoxide detector

· Smart meters, smart city, intelligent city, smart power grids, smart home

· Mobile asset tracking, RFID tracking,

· Medical Equipment, patient monitoring, mobile workstation, electrical wheel chair

· GPS positioning, unattended sensor, ETC system

· Emergency location transmitters beacons (ELTs, EPIRBs)

· Professional electronics

· Radio communication, RFID tracking

· Oil exploration, fleet monitoring, test inspection instruments

· Automotive telemetry

· NB-Lot  LORA WAN LoRa Wan , the things network , 5G

· TPMS  OBU RSU Tire pressure monitor system

  • Model Number: ER17505
  • Nominal capacity: 3500mAh
  • Nominal Voltage: 3.6V
  • Size: 17.0mmX50.5mm
