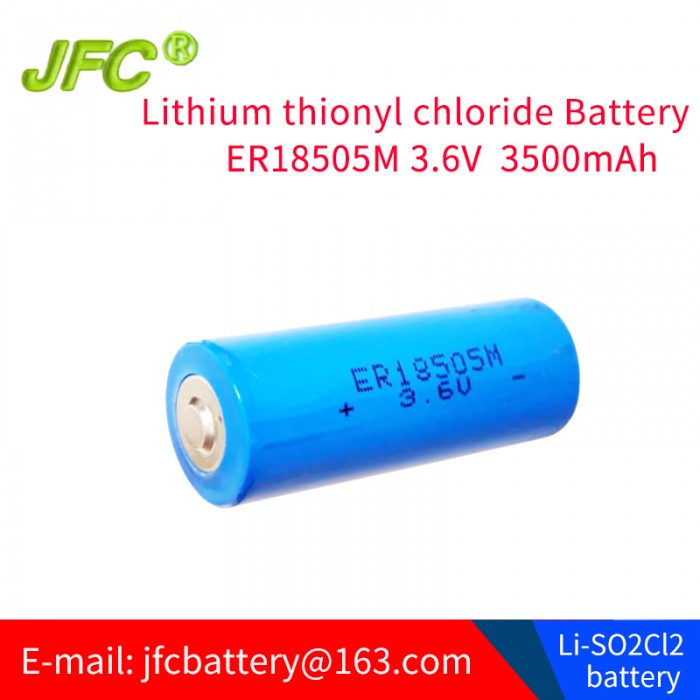

Lithium Battery Er18505m 3.6V A Size Power Tools Home Appliances Consumer Electronics

Spiral Type Environmentally Friendly Durable ER18505M 3.6V 3500mAh Battery

Product features :

High cell voltage : open-circuit voltage of 3.67V and an operating voltage of 3.60V
 Wide operating temperature range : from -55°C~+85°C
 High energy density :  up to 650Wh/kg and 1280Wh/L.
 Low self-discharge rate: less than 1% per year at 20°C
 Long life span and superior shelf life : storage periods and achieve a service life of 10 to 20 years.
 Excellent safety : inspected by Laboratories, and meet UN transportation test requirements.




Specification
Lithium thionyl chloride battery Li-SOCL2

Specification
  ER18505M coiling type, stainless steel shell, fully sealed structure
Norminal voltage 3.6V
Norminal capacity 3500mAh 5mA, 25±3ºC,cut-off at 2.0V
Max. continuous discharge current 500mA To get 50% of the nominal capacity at 25ºC, 2.0V cut-off.higher currents possible,
Max. available pulse current 1000mA 1000mA/0.1s pulse,drained every 120s at 25ºC from undischarged cell with 20uA base current,yield voltage readings above 2.7V.Fitting the cell with lithiun-ion battery capacitor will get higher pulse,
Operating temperature -55ºC~+80ºC
Dimension φ18.5x50.5
Standard weight About  30g
Annual self-discharge rate ≤1% 25±3ºC,RH 65±10%

Storage
  recommended temperature ≤30ºC and the relative humidity ≤60%

Specification

Lithium thionyl chloride battery Li-SOCL2

Specification

 ER18505M coiling type, stainless steel shell, fully sealed structure

Norminal voltage 3.6V

Norminal capacity 3500mAh 5mA, 25±3ºC,cut-off at 2.0V

Max. continuous discharge current 500mA To get 50% of the nominal capacity at 25ºC, 2.0V cut-off.higher currents possible,

Max. available pulse current 1000mA 1000mA/0.1s pulse,drained every 120s at 25ºC from undischarged cell with 20uA base current,yield voltage readings above 2.7V.Fitting the cell with lithiun-ion battery capacitor will get higher pulse,

Operating temperature -55ºC~+80ºC

Dimension φ18.5x50.5

Standard weight About  30g

Annual self-discharge rate ≤1% 25±3ºC,RH 65±10%

 Storage recommended temperature ≤30ºC and the relative humidity ≤60%



  • Model Number: ER18505m
  • Nominal capacity: 3500mAh
  • Nominal Voltage: 3.6V
  • Size: 18.5mmX50.5mm
